Description

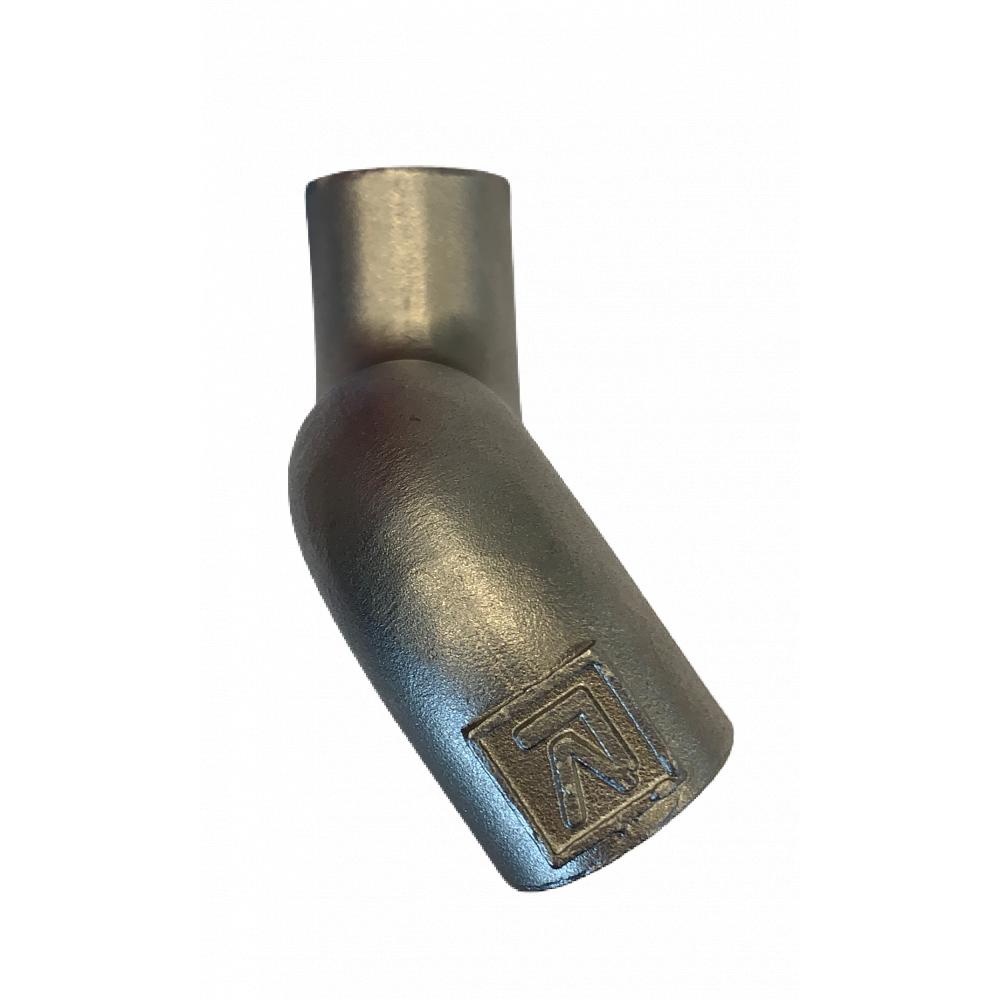

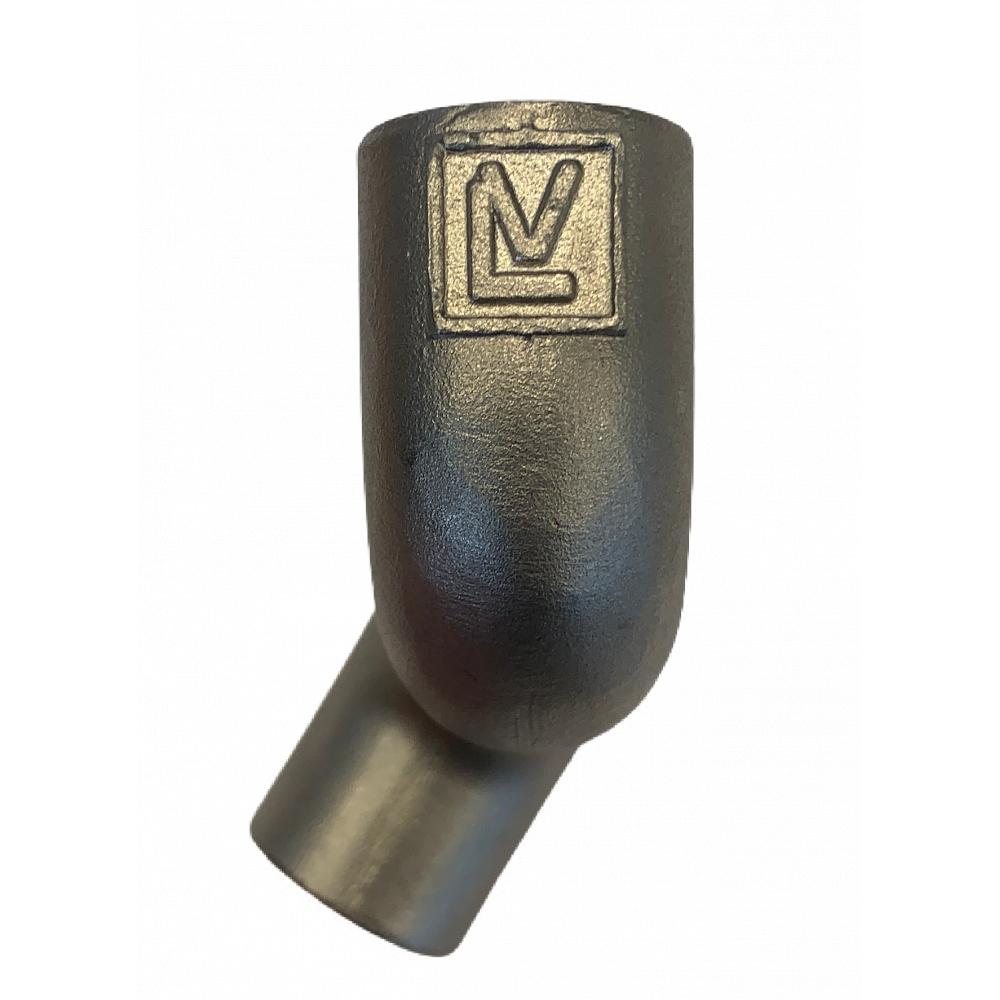

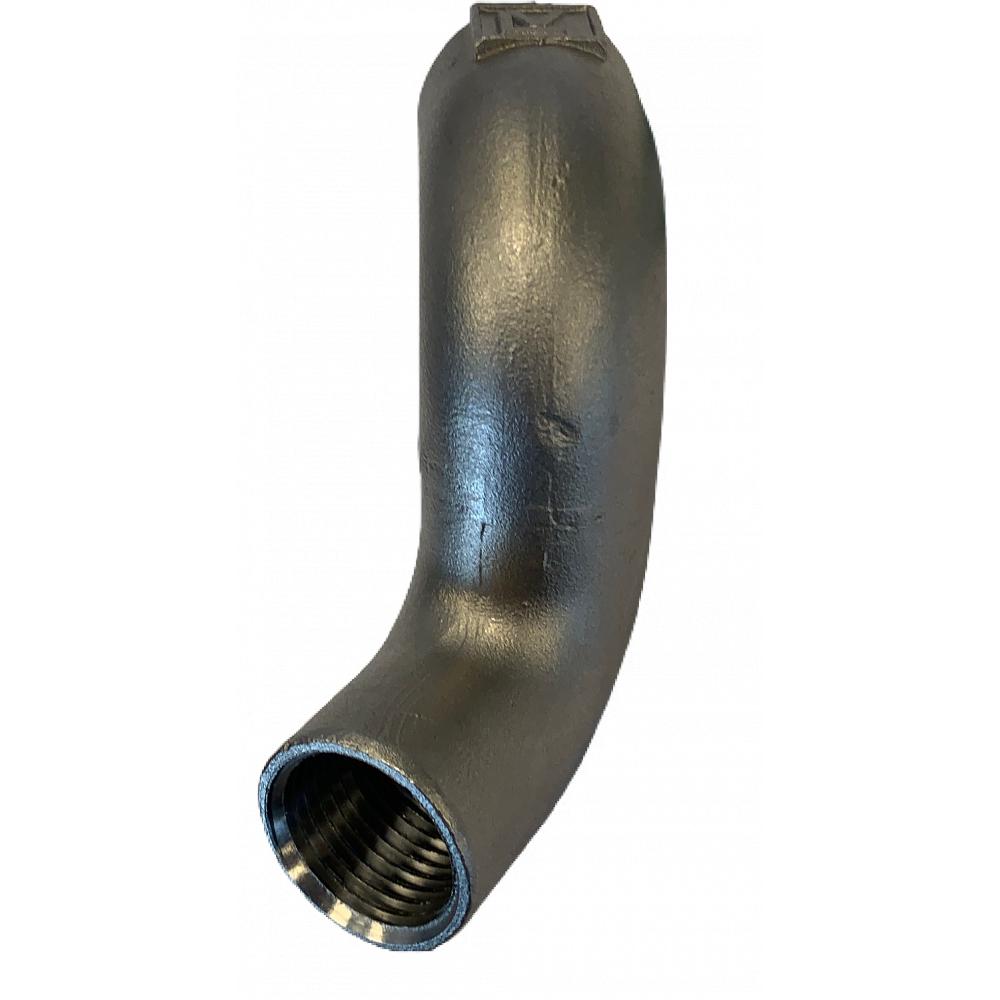

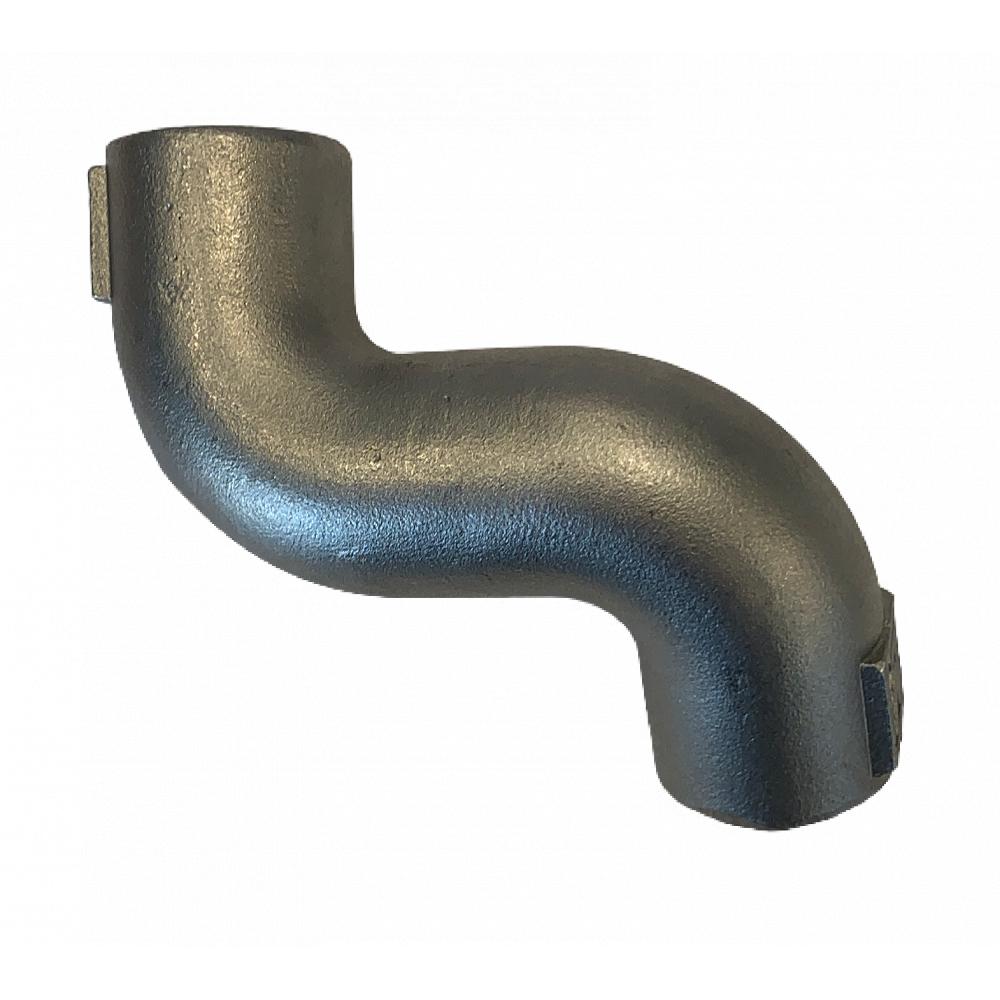

The PT1 STAINLESS STEEL 1⁄2 hindered S-turn is a sturdy and efficient solution for applications where an angle of 30 degrees is required. Made of high quality stainless steel 304, this S-turn has both upper and lower internal half-thumb thread. This design replaces two joined stainless steel knees or fittings, saving a lot of working time. Moreover, the S-turn is more resistant to leakages, making it a reliable choice for installations in the barn.
Efficiency and reliability
The stainless steel S-turn of PT1 offers significant benefits in terms of efficiency and reliability. Because this S-turn replaces two stainless steel knees, you not only save on installation costs, but also on time. In addition, the sound design significantly reduces the risk of leakage. This keeps your installation functioning better, even in demanding conditions.
Applications in burrs and dosators
This stainless steel 1⁄2 hindered S-turn is often used in PT1 grubbers and dosators. In these applications, nipples should point forward at an angle of 30 degrees. At the top of the S-bend you can easily twist in a 1⁄2along pipe with external thread, while you can mount pipe or a 1⁄2along drink nipple at the bottom. This makes the S-turn versatile and widely usable.
Technical specifications

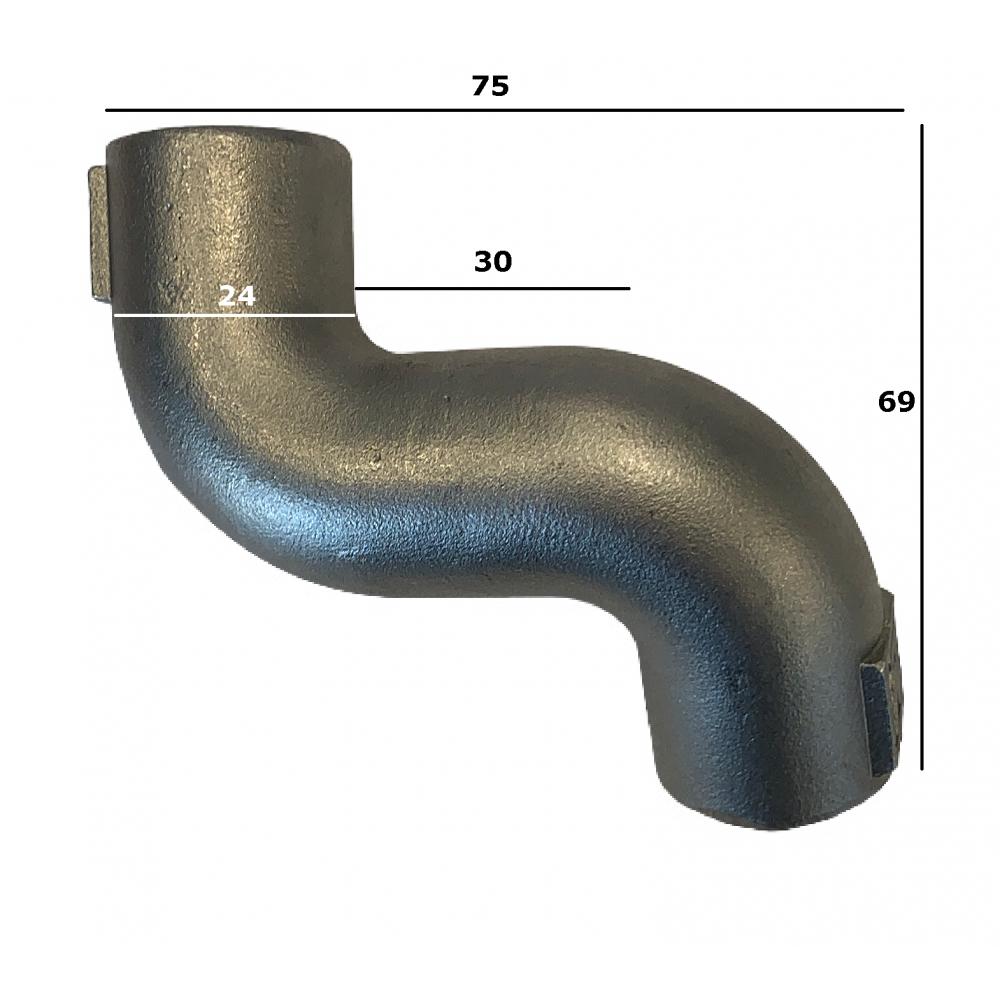

The PT1 Stainless steel S-turn is 69mm high and 75mm wide, with a distance of 30mm between the two runs. These dimensions make the S-turn suitable for a wide range of installations. Whether you are working on a new installation or want to upgrade an existing one, this S-turn offers an efficient and sustainable solution.
